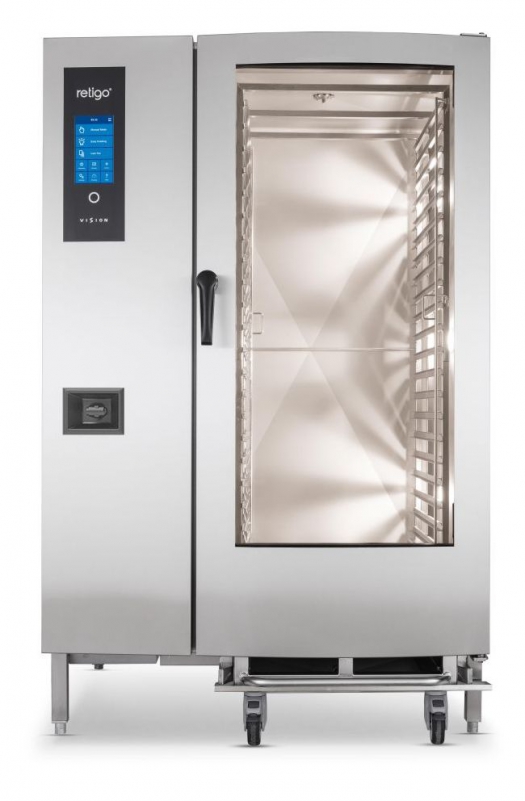

B2021 Combi Steamer 20 Tray 2/1GN
Retigo B 2021 I, B, IG Combi Oven
RETIGO Blue Vision is the most advanced generation of RETIGO Vision combi ovens. Individual combi ovens are designed to provide all a demanding user needs. It is operated via the 8″ control panel, which provides easy access to all key and special functions. All basic versions include an automatic cleaning system, Easy Cooking, a flap valve, and a six-point temperature core probe.
The Retigo Vision 2021 combi oven is appropriate for enterprises that produce 600-900 meals per day. Gastronorm container sizes are GN 2/1 (650×530 mm) and GN 1/1 (530×325 mm). This combi oven’s basic equipment includes a cart. Customers can also purchase a variety of accessories to complement this size combi oven, such as a replacement trolley, banquet-style food service equipment and so on. The steam generation system is either injection or boiler-based. The heat source is either electricity or gas.
UNIQUE BENEFITS
VISION PERFECT COOKING
Give your diners a great reason to keep returning to your place. With Retigo Vision combi ovens, you have the peace of mind that you will always achieve outstanding cooking results. The prepared foods have a perfect color, are juicy, crispy, and healthy with minimal fat content.
VISION CONTROLS
Gives you time to concentrate on cooking and things that really matter to you. The simplest controls on the market will save you time and enable you to quickly and easily make all the necessary settings. Display response is perfect even with grease or gloved hands
VISION DESIGN
Simply keeps you cooking with ease and comfort. Experience an excellent combination of features, exceptional ergonomics, and an attractive appearance. All this with a focus on safety, hygiene, and long-time reliability.
SMART INVESTMENT
Generates money on savings for you every day. In-built heat exchanger, triple glazed door glass, 50 mm thick thermal insulation combined with low consumption automatic cleaning will ensure you a great return on investment.
FEATURES & BENEFITS
COOKING
- Hot air 30 – 300 °C
- Combination 30 – 300 °C
- Steaming 30 – 130 °C
- Bio steaming 30 – 98 °C
- Overnight cooking – Saves time and money.
- Rack timing – Set individual rack times for multi-product cooking.
- AHC (Active Humidity Control) – Automatic humidity control for great cooking results.
- Advanced steam generation system – Two-step water preheating with an in-built heat exchanger for perfect steam cooking results.
- Crosswise racks – Safer and comfortable GN handling. Better product visual control.
- Regeneration/banqueting – Cook, chill, and regenerate to serve more diners in shorter times.
- Delta T cooking – Use the advanced cooking method to reduce shrinkage on slow-roasted meats getting amazing results.
- Low-temperature cooking – Benefit from less weight loss, better taste.
- Cook & Hold – Let it cook and held serving temperature.
- Golden Touch – Add a golden-brown, crispy finish with just a touch.
- Automatic preheating/cooling minimizes the loading temperature drop. Start cooking with the desired temperature.
- Sous-vide, Drying, Sterilization, Confit, Smoking – Great way to make your menu special.
VISION TOUCH CONTROLS
- 8“ display – Perfect overview, easy and intuitive control.
- MyVision – Customize your menu so you have all you need right on the main screen.
- Touch panel – Panel works under all conditions and has a fast response, no mechanical elements, buttons, or wheels.
- Easy Cooking – Get great results even with less experienced chefs thanks to easy cooking guidance.
- 6-point core probe – Allows foods to be automatically cooked to any desired internal temperature.
- 1000 programs with 20 steps
- Pictograms – Take a food picture on the main screen. Match it with a program. Touch it to get the desired cooking results repeatedly.
- Learn function – All cooking adjustments are recorded. In the end you save great results achieved and recall them again when needed.
- Last 10 – Cooking process easy to be used again but just a touch.
- Multitasking – Unique opportunity to work with a display during cooking.
- Automatic start – The ability to schedule a delayed start.
- EcoLogic – Energy consumption shown right on the screen. Keeps your cost under control.
- Continuous cooking time option – Saves your time during busy operations.
OTHER EQUIPMENT
- Active Cleaning – Low-cost automatic cleaning. No chef‘s time spent on cleaning anymore.
- Double glazed door glass – Advanced energy savings and external glass that does not burn you.
- Auto-reversing fan – Excellent evenness to deliver high product color and texture uniformity.
- Flap valve – Patented dehumidification system for great color and crispiness.
- Massive door handle – Comfortable and safe handling with silver ion material contain for bacteria reduction.
- AISI 304 stainless steel – Exceptional quality with a special coating for an extended lifetime.
- Hygienic cooking chamber with round inner corners – Trouble-free maintenance.
- Hand shower – External water supply hose with a spray nozzle. Extra water source at your disposal.
- Run-off tray under the door – No slipping on the wet floor.
- Two water inlets – Saves a water treatment unit‘s capacity.
- WSS (Water Saving System) – Special drain system & in-built heat exchanger to save water-related cost.
- Removable GN holders with 65 mm spacing
CONNECTIVITY
- USB plug-in – Transfer useful data easily to and from the combi oven.
- Ethernet/LAN – Allows remote access for data management.
- VisionCombi software – Program and pictogram management in your PC, HACCP data view.
OPERATION LOGS
- HACCP records – Easy and immediate analysis of critical cooking points.
- Complete operating records
SERVICE
- BCS (Boiler Control System) – Nothing stops you from steam cooking with the in-built advance direct steam generation system.
- SDS (Service Diagnostic System) – Easy unit check-up and troubleshooting.
TECHNICAL DATA
| Model | B 2021 i | B 2021 b | B 2021 ig |
| Technical specification | 2E2021IA | 2E2021BA | 2G2021IA |
| Energy | Electricity | Electricity | Gas |
| Steam generation | Injection | Boiler | Injection |
| Capacity | 20 x GN2/1 | 20 x GN2/1 | 20 x GN2/1 |
| Capacity of meals | 600 - 900 | 600 - 900 | 600 - 900 |
| Spacing | 63mm | 63mm | 63mm |
| Dimensions (w x h x d) | 1150 x 1841 x 952 mm | 1150 x 1841 x 952 mm | 1150 x 1841 x 952 mm |
| Weight | 330 kg | 336 kg | 378 kg |
| Total power | 59,4 kW | 59,4 kW | 1,66 kW |
| Heat power | 58 kW | 58 kW | 78 kW |
| Steam generator power | - | 48 kW | - |
| Fuse protection | 100 A | 100 A | 10 A |
| Voltage | 3N~/380-415V/50-60 Hz | 3N~/380-415V/50-60 Hz | 1N~(2~)/220-240V/50-60 Hz |
| Noise level | max. 70 dBA | max. 70 dBA | max. 70 dBA |
| Water/Drain connection | G 3/4” / 40 | G 3/4” / 40 | G 3/4” / 40 |
| Gas connection | - | - | G 3/4” |
| Temperature | 30 - 300 °C | 30 - 300 °C | 30 - 300 °C |
